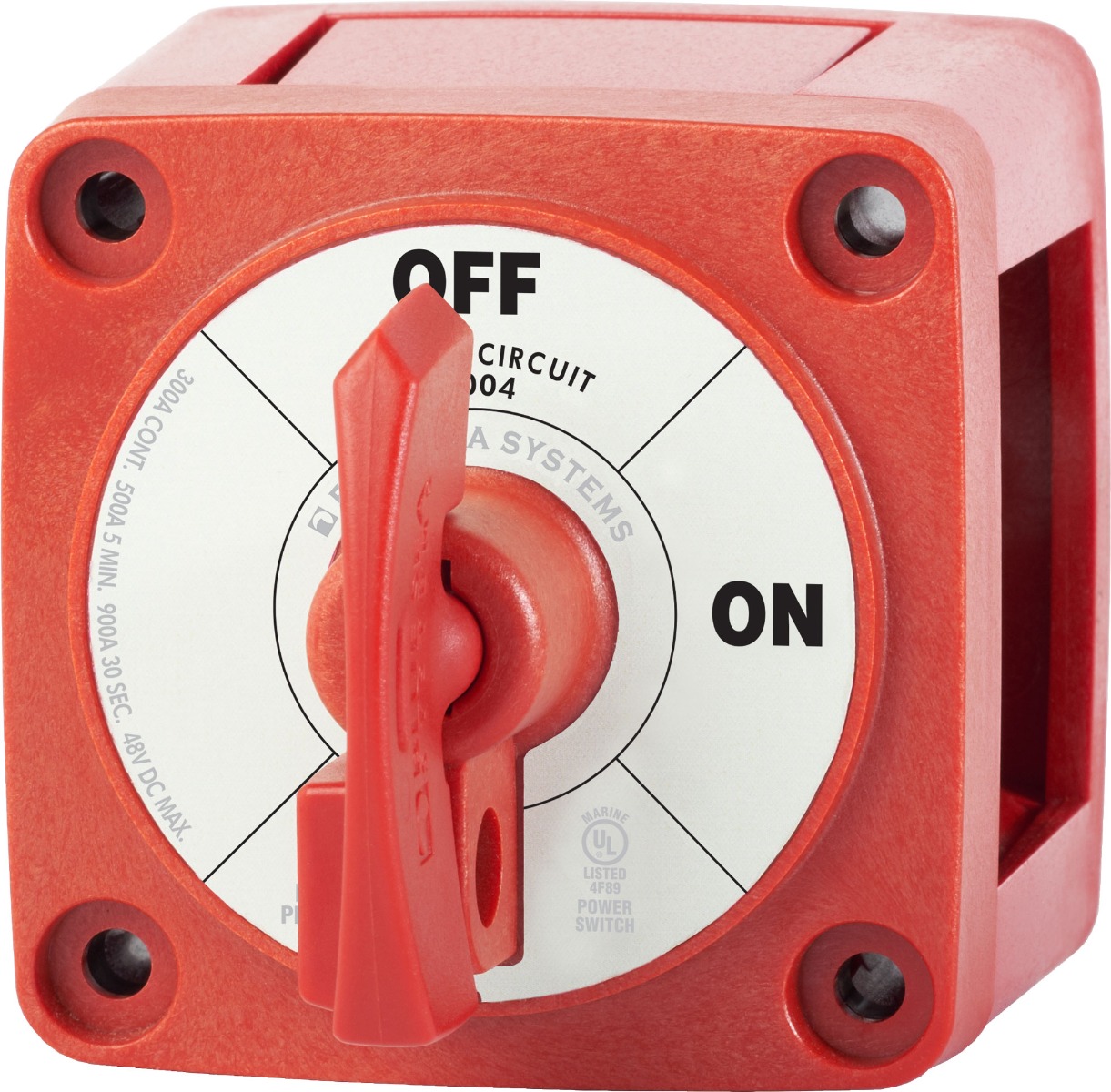

Single Circuit ON-OFF with Locking Key – Red

Specifications

Switch Type
Single Circuit ON-OFF*

Color
Red

Maximum Voltage
48V DC

Stud Size
3/8″

Continuous Rating**
300A

Intermittent Rating***
500A

Cranking Rating 30 sec****
900A

Stud Material
Tinned Copper

Stud Torque
120 in-lb (13.56 Nm)

Weight
0.65lb (0.29 kg)


*Switches a single battery to a single load group
**The maximum current a switch is designed to conduct for an indefinite period.
***The maximum amount of current a switch is designed to carry for a minimum of a designated period of time.
****Normally associated with ‘cranking current’ which is the current required by the starter circuit prior to engine starting. The cranking current varies significantly during the starting cycle. Initially, there is a large surge of current required to overcome the inertia and compression of the engine. This surge can be two to four times the average cranking current. Once the engine is turning there are peaks and valleys as the pistons go through the compression and exhaust cycles. The cranking current rating is used for sizing batteries, cables, and battery switches.
