Zinc Engine Anode Kit For VOLVO PENTA 290

Volvo Penta (Zinc):Aluminium outboardes should be protected with zinc anodes in sea water; as aluminium anodes produce alkalinity at the cathode which can effect the aluminium casing. Magnesium Anodes are avalible for fresh water environments.Z-guard offers a full range of equivalent zinc and magnesium anodes for Volvo Penta, OMC-Johnson-Evinrude, Mercruiser-Mercury, Mariner-Yamaha, Suzuki, Yanmar, Honda, Bukh, Vetus, Arneson, Hamilton etc.

Zinc Engine Anode VOLVO PENTA Large Prop Ring 120mm

WEIGHT

0.73 kg

ANODE DIMENSIONS L X W X H

154 x 120 x 35 mm

TOTAL LENGTH INC MOUNTING INSERT

NA

WATER TYPE

Salt Water

ANODE SHAPE

Large Prop Ring Anode (for Volvo Penta 280 and 290 Sterndrives)

FIXING HOLE DETAILS

61mm Internal Hole Diameter
80mm Distance Between Holes
9mm Countersunk Holes

NUMBER OF FIXING HOLES

2

FIXING TYPE

Bolt-On

ANODE METAL TYPE

Zinc

STUD SIZE

Fits 280, B, C, D, E, SP, T, 290, A, B, D, SP, SP-A, SP-C, SP-E, SP-A1, SP-A2, 280PT

COUNTRY OF MANUFACTURE

U.K.

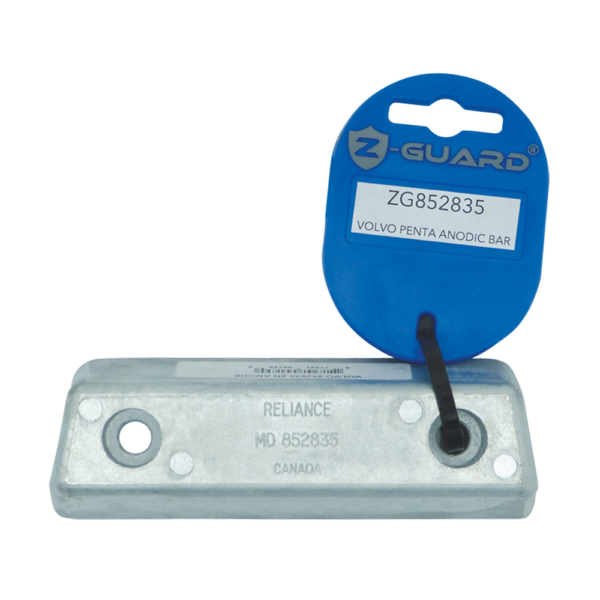

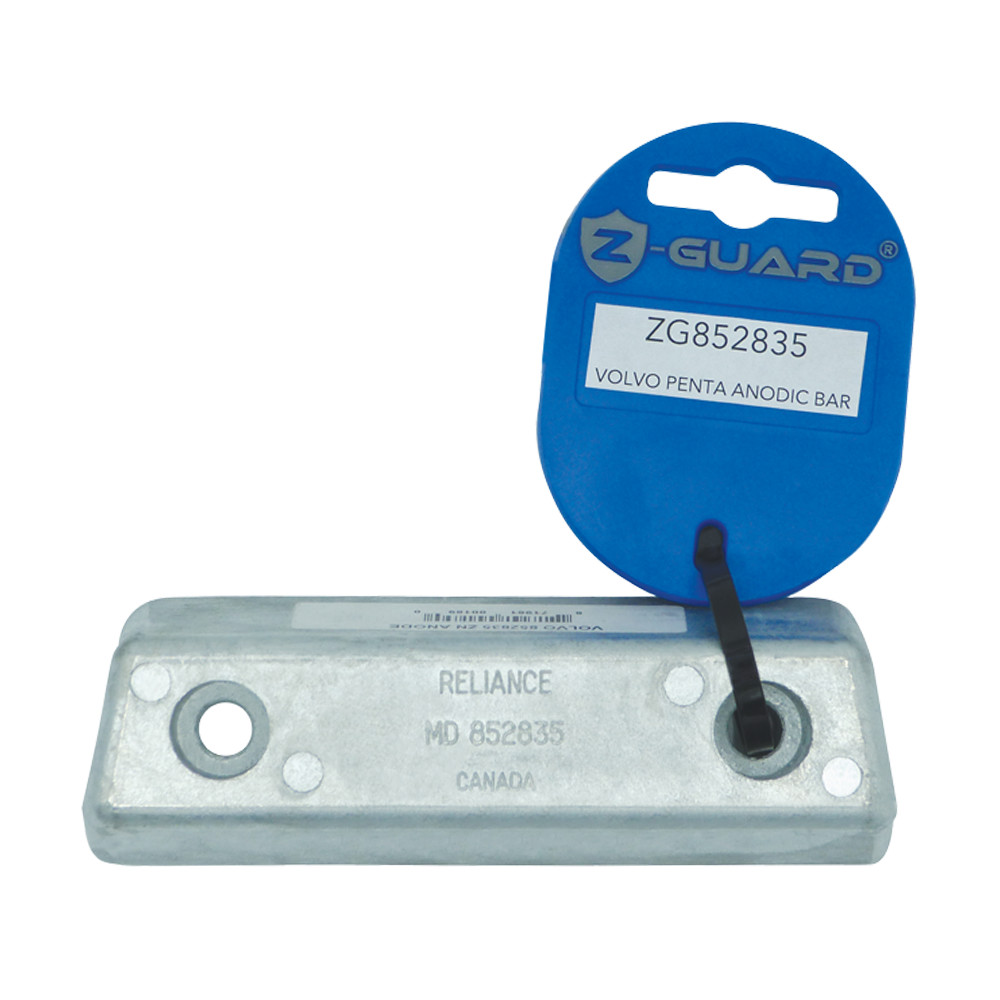

Zinc Engine Anode Volvo Penta Anodic Bar

WEIGHT

0.76 kg

ANODE DIMENSIONS L X W X H

136 × 46 × 26 mm

TOTAL LENGTH INC MOUNTING INSERT

NA

WATER TYPE

Salt Water

ANODE SHAPE

Bar Anode

FIXING HOLE DETAILS

86mm centre (for Volvo Penta Sterndrive and Engines)

NUMBER OF FIXING HOLES

2

FIXING TYPE

NA

ANODE METAL TYPE

Zinc

STUD SIZE

8mm

COUNTRY OF MANUFACTURE

U.K.
