m-Series Automatic Charging Relay – 12/24V DC 65A

SKU: BSS7601

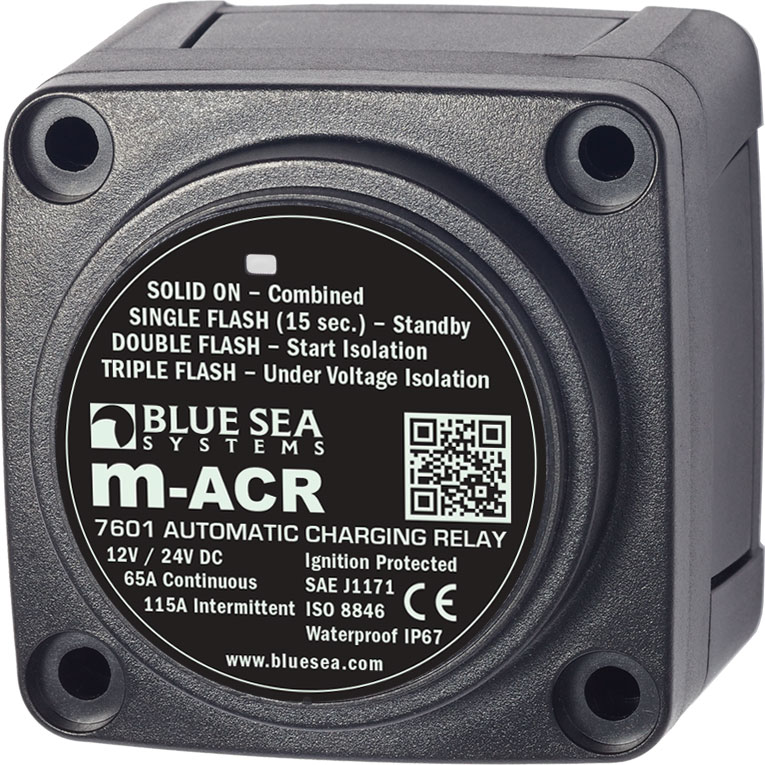

The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.

Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.

The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.

 Features

Senses charging on two battery banks
Pull off and snap on insulating cover
LED indicates ACR status
1 ∕4″ x .032″ male quick connect terminal for ground
7∕ 16″ (11 mm) stud length to accept multiple cable terminals
Waterproof – rated IP67 for temporary immersion

Original price was: £114.34.Current price is: £95.28.

— OR  —

— OR  —

Specifications

Nominal Voltage
12V DC24V DC

Start Isolation*
Yes

Amperage Operating Current
90mA (Combine)15mA (Open)

Terminal Stud Torque
60 in-lb (6.78 Nm)

Continuous Rating**
65A

Intermittent Rating***
115A (5 min)

Cable Size to Meet Ratings
6 AWG

Maximum Cable Size
1/0 AWG

Stud Material
Tinned Brass

Terminal Stud Size
1/4″ – 20 (M6)

Relay Contact Position


Combine 30 sec
13.6V DC

Open 10 sec
12.35V DC

Open 30 sec
12.75V DC

Open High
16.0V

Under Voltage Lockout****
9.5V

Weight
0.80lb (0.36 kg)


*Condition: Engine starting

Relay is open isolating batteries
Batteries are isolated to protect sensitive electronics from voltage sags and spikes

**The maximum current a switch is designed to conduct for an indefinite period.
***The maximum amount of current a switch is designed to carry for a minimum of a designated period of time.
****As a safety feature, some ACRs prevent combining into a severely discharge battery. A dual-sensing ACR will monitor the voltage on both batteries and will not connect if either battery is below the undervoltage lockout level. Use caution when combining into a battery with extremely low voltage, because this might represent a faulty battery or a problem elsewhere in the system.
